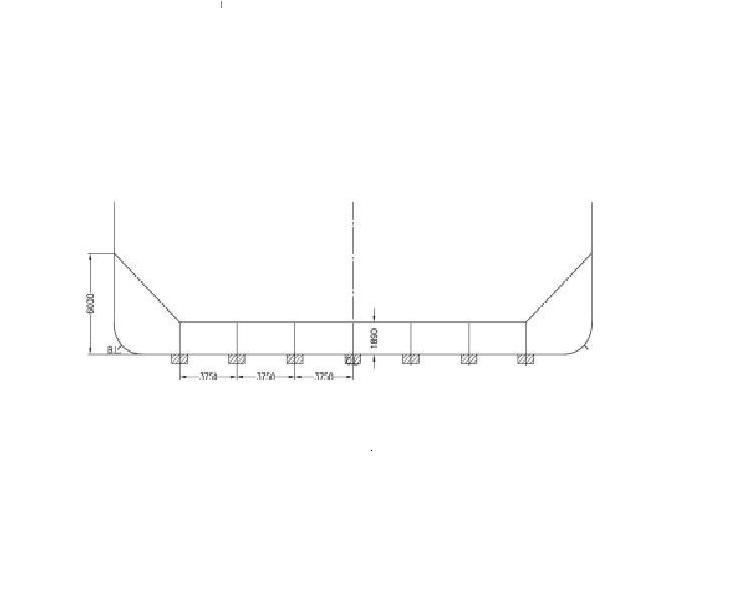

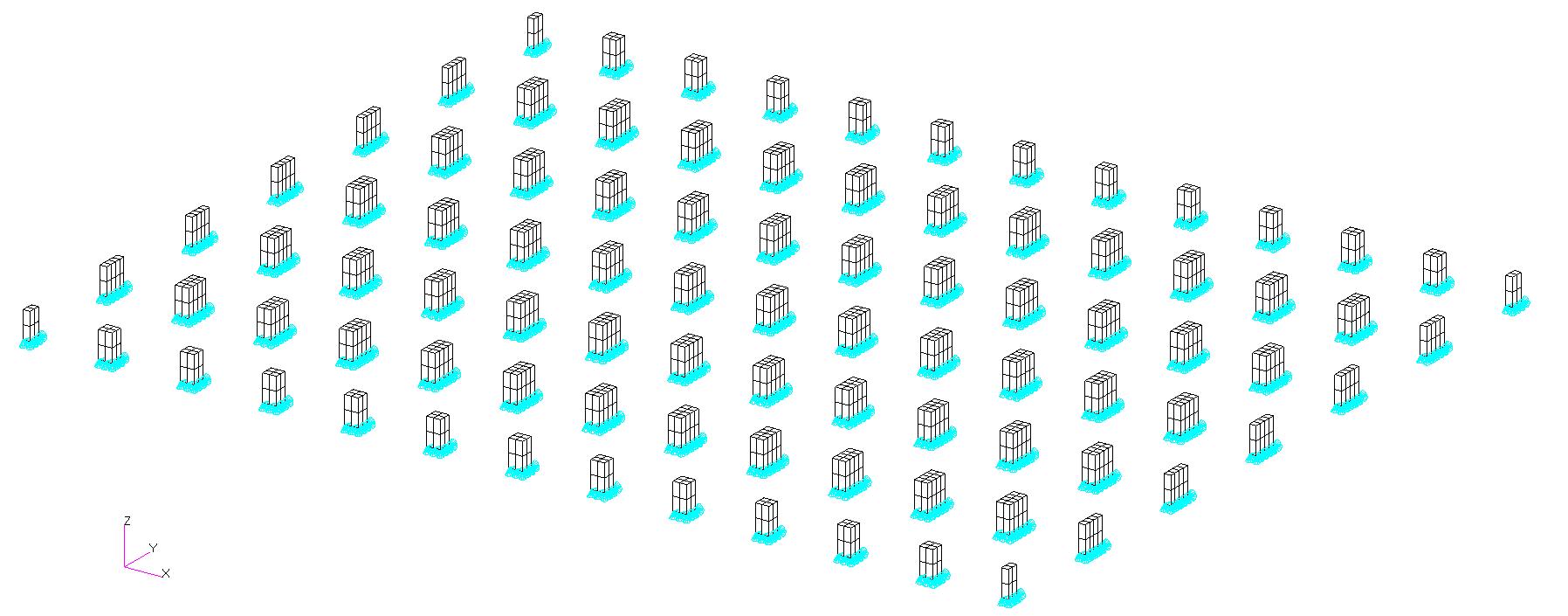

Refer to M.V. “TONG HAI” of COSCO 47,980DWT bulk carrier, which is suspended that the rudder is broken and will

 be repaired in the dock in Germany. “TONG HAI” is boarded with cargo. The docking condition is different from that

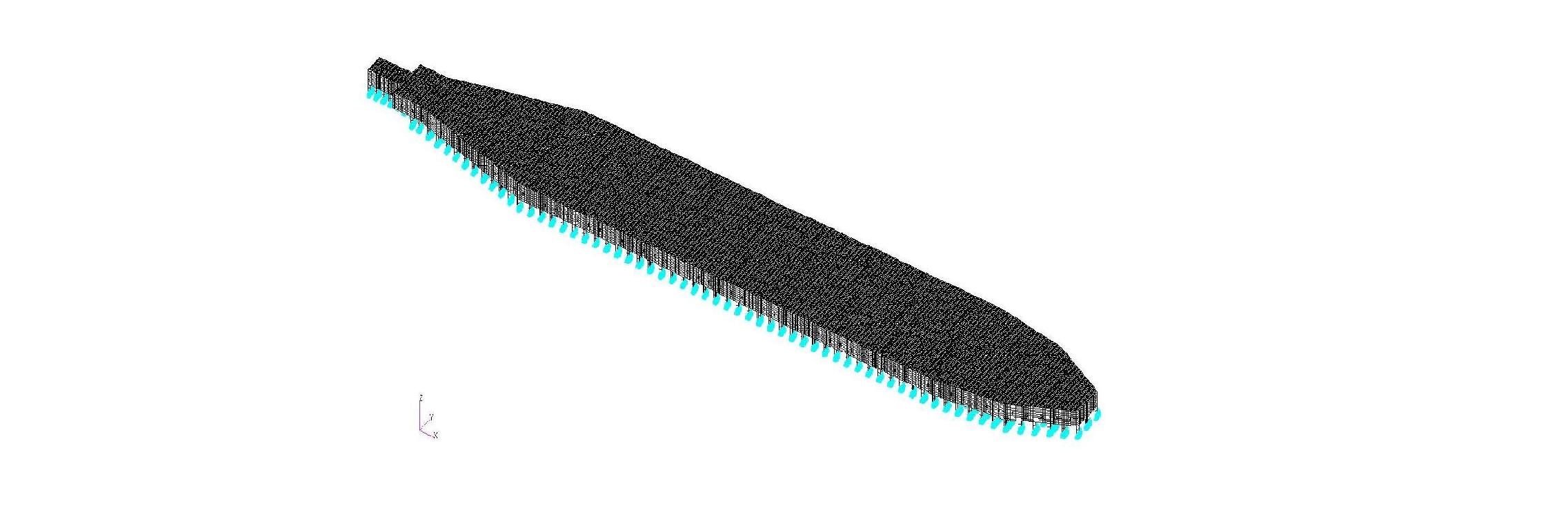

with lightship. The docking plan will be designed and the strength of the ship structure will be evaluated.

According to the loading condition of M.V. “TONG HAI”, the cargo isn’t liquid or PM, the assessment of the strength of

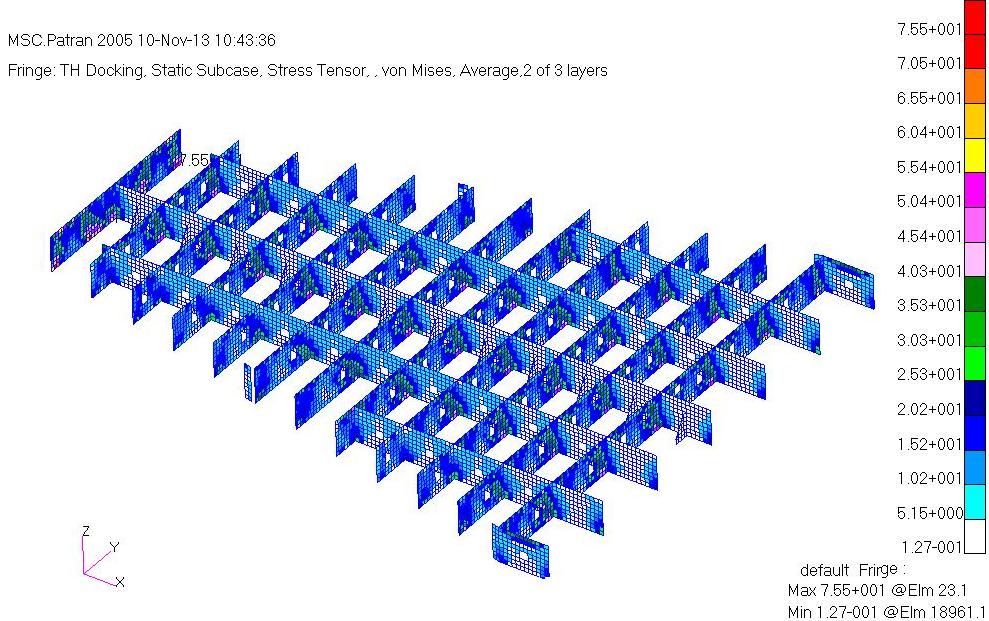

 the ship structure is focus on double bottom structures, especially the girder and the floor.

The assessment is based on the material and loading information provided by the owner, and General arrangement,

Midship section, Shell expansion, Double bottom in hold, the loading manual, and so on.
